| Item |
| XB20 |
| Platform |
| Comet lake |
| CPU | Processor Type | Intel® Coffee lake-U I5-8259U, 2.3GHz/28W, Intel® Iris® Plus Graphics 655
Dual Core (4C/8T)
BGA 46mm x 24mmx 1.32mm |
| Process | 14nm |
| L2 Cache | Supports Intel® Burst Technology， Supports 6MB of L2 Cache |
| Memory | Technology | Dual channel, DDR4, SO-DIMM, 2400Mhz |
| Memory | 4GB up to 32GB |
| Display | LCD Type | N/A |
| touch panel | N/A |
| Communication Port | Wireless LAN/Bluetooth | Intel Stone Peak AC3165 802.11 a/b/g/n/ac 1x1 and Bluetooth 4.2 Combo Module |
| Card Reader | Controller | SOC |
| Card Reader | Micro SD |

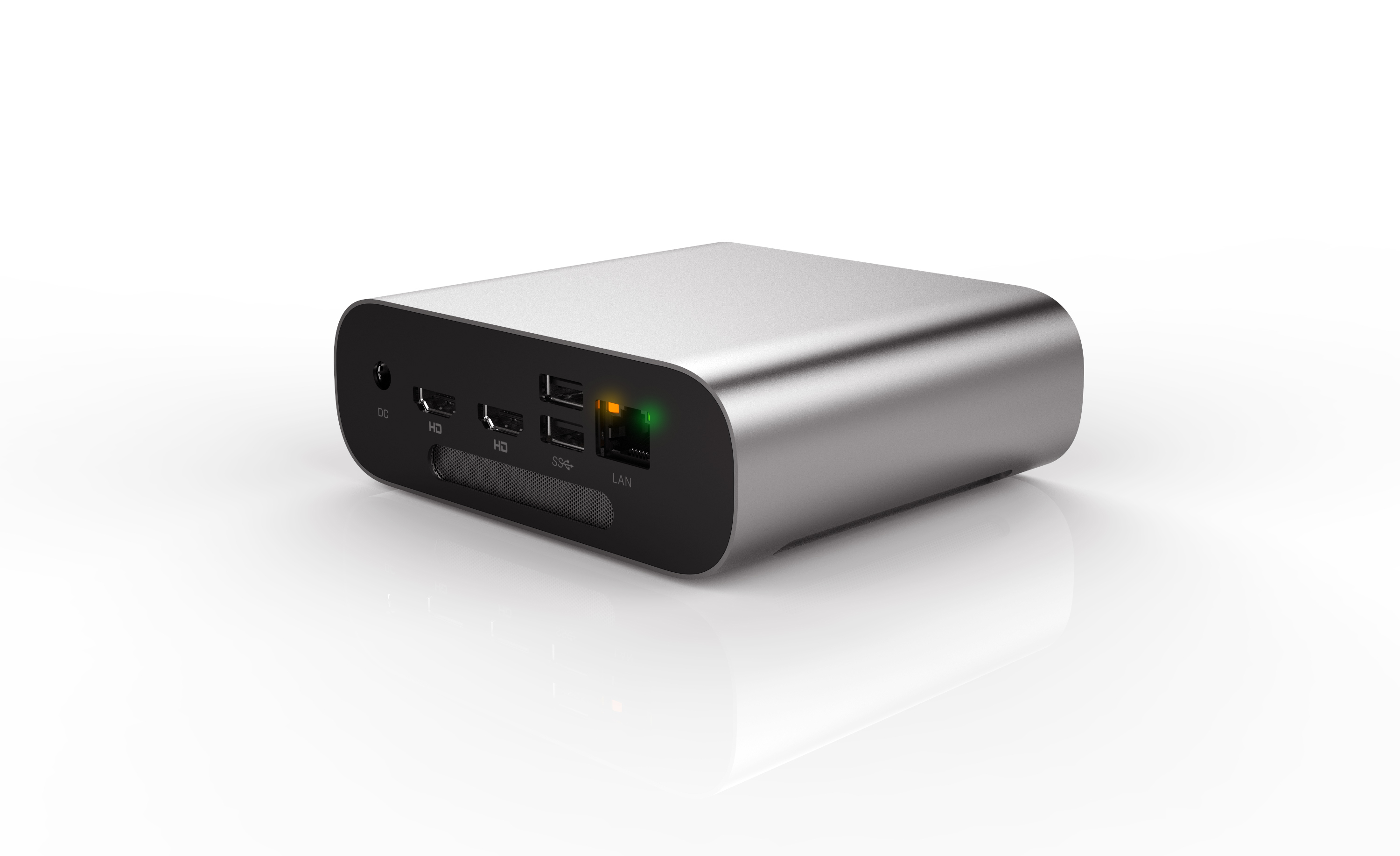

| I/O | DC-IN Jack | x1 |
| USB 3.0(Type A) | x4 |
| USB3.0 Gen.2 Type-C | x1 |
| Giga LAN(RJ45) | x1 |
| HDMI 1.4 | x2 |
| Audio | Audio Jack | x1 |
| storage | SSD | 128G~1TB |
| HDD | 500GB~2TB |
| Hot Keys | Power Button | x1 |
| Power | AC adapter | AC 100~240V, 50/60Hz,19V/3.42A |
| Physical Characteristics | Dimension(L x W x H) | 112*126*44mm |
| Weight(g) | 500g |
| Software | Support OS | Windows 10 /Linux TBD |
| WHQL/CTS |
|
|
|
|
|
|
|
|
|
|
|
|
|
